Complete System 1 and System 2 board sets
Bring your Fireball, Evel Knievel, Captain Fantastic, or Galaxy Ranger home model back into play with a new controller and companion power jumper board. Choose the complete set that matches your machine’s model number.
$369 USD per complete system · Hand-assembled and tested in Ohio.

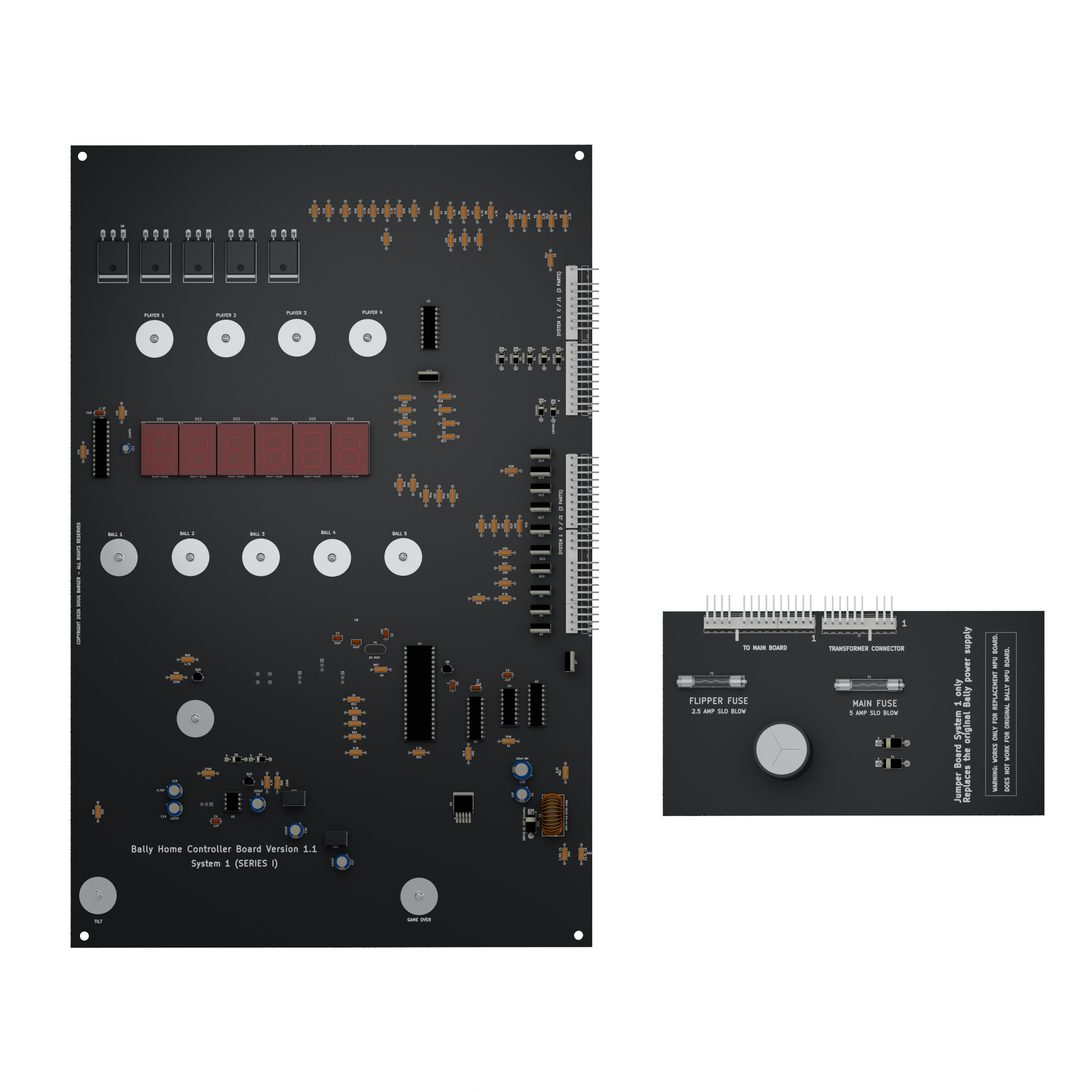

System 1 controller and matching power jumper board. Rendered production-layout preview.
Find your replacement board
These replacements are for Bally’s home pinball machines. Check the model number or compare the two board styles before ordering: Fireball was made in both Series I and Series II versions.
Each purchase includes two newly built boards that work together: the main controller runs gameplay, displays, lamps, switches, coils, and sound; the companion power jumper board replaces the original power-supply board. The new system connects to the supported machine’s existing harnesses, with the included power connection installed as described in the guide.
Keep the familiar game in Standard mode. Enhanced mode adds speech, an early ball save, a 10,000-point flashing top-lane award, and timed standup-target challenges.
A new main controller and a companion fused power jumper board replace the original controller and power-supply electronics as a matched system.
Built-in diagnostics, installation documentation, and direct support help you keep your classic home pinball machine in play.
This is a complete two-board replacement system. Remove the original main controller and power-supply board and install the new matched board set.
Fireball Home models 606-1000 and 614-3000 use System 1. Fireball Home model 614-5000 uses System 2. The game name alone is not enough. Check your model number, or match the board style in your machine to the System 1 and System 2 pictures. There are only two board styles to choose from.
No. These sets are designed for the listed Bally home models. A commercial or coin-operated Bally machine with a similar game name uses different electronics.
Each system is hand-assembled and tested in Ohio and includes a 90-day limited repair warranty. You can download the user guide before ordering. Contact Doug at info@ballyhomeboards.com with compatibility or installation questions.
Public ordering is open
Completed boards in stock ship in 1–2 days. Boards that need to be built ship in 2–3 weeks. Checkout shows the timing for your quantity. Orders ship together when all units are ready. Carrier transit time is additional.
Each system includes the main controller and matching fused power jumper board. Shipping and applicable tax are calculated at checkout.
Doug Barger designs, hand-assembles, and tests these board sets in Ohio. Find installation guides, warranty information, and direct support before or after your purchase.
For existing board owners
Check the latest firmware, find your installed version, and request a processor update. Standard reprogramming is free within 90 days of delivery, then $10. Advanced Exchange is $20, with no requirement to return your original chip.
Board service
Request authorization before sending your System 1 or System 2 replacement board. Covered defects follow the 90-day limited warranty. After 90 days from delivery, the repair fee is a flat $50 USD.
